The Lavant Shagbarks - New Sites

Dolman Ridge
Sawmill Creek

The main range of shagbark hickory (Carya ovata) ends just north of the St. Lawrence River, zone 5b. Early reports noted the species occasionally in the Ottawa area (zone 5a), but only a small possibly natural group remains here, along the bank of the Ottawa River. However, recently a significant outlying population was discovered in Lavant Township, zone 4b, on a single small site.

To preserve the C.ovata lavanti genome, nuts have been collected from the site for several years. Some were planted in back yards in Ottawa and Lanark, most given to the Ferguson Forest Center in Kemptville to grow and distribute to areas north of the main range of the species.

Dolman Ridge

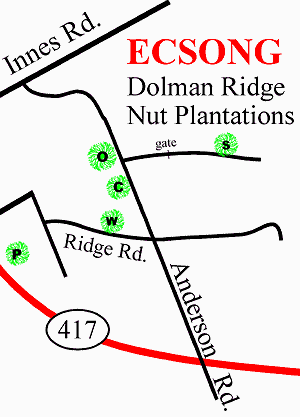

The spring of 2005, 100 of the 2003 crop in peat pots from Ferguson, and 8 of the 2002 crop raised in Ottawa, were planted out on a site provided by the National Capital Commission along the restricted access portion of the Dolman Ridge Road. (S at right. An NCC access permit is required for vehicular access; foot access is from the Dewberry Trail parking lot at the gate.) It is isolated from existing hickory populations by at least a kilometer. The soil is sandy and well drained. They were surrounded with a meter-square roofing paper ground cover to suppress competition, as shown at right. This usually permits an 90% survival of tap-rooted seedlings planted in meadows here, where goldenrod and asters reach a meter in height. It also permits the seedlings to be found in early years. (Commercial plantings use Simazine, a pre-emergent herbicide, for this purpose. Since this is a Ramsar conservation area, no toxic substances are permitted.) The paper is removed once the trees rise above the surrounding forbes. In any case, it has been found to almost completely disintegrate on its own within 10 years when in contact with soil.

The ultimate aim was to have a reserve population approximately equal in size to the original at Lavant.

The first weekend after planting was completed, a vandal uprooted and destroyed a dozen of the seedlings nearest the road, including half of the home-grown plants. After signs were posted noting that this was a research planting, and chats with regular dog walkers in the area about the importance of the planting, the vandalism ceased. Then, it turned out that the roots of all the Ferguson trees had been killed over the winter before planting. Solely 4 of the 8 transplanted bare root survived.

The fall of 2005, 120 seedlings from the 2003 crop, grown by Len Collett of Lanark, were planted. They were mixed in one area with 15 bear oak (Quercus illicifolia) grown from seed obtained from Tamworth ON, in another with 30 white oak (Quercus alba) grown from seed from trees on the Dolman Ridge, in another with 10 American chestnut (Castanea dentata) also grown from seed from trees on the Dolman Ridge. Other suitable species will be interplanted later, once the pattern of survival of the shagbarks is determined. The aim is to have the plantation half shagbark, half other compatible species, the ratio found at the Lavant site.

By late spring 2006, up to half of the seedlings appeared to be dead from stem rot. It seems that these shagbarks are much more susceptible to rot over winter than are shagbarks from the main population range. So, the paper was ripped back several centimeters from the trunks of all of them to ensure adequate water drainage and ventilation, even though this reduced the effectiveness of the paper in suppressing competition. This experience suggests that the failure of the Ferguson seedlings was due to excessive root moisture. The seedlings certainly had not dried out (a common problem with plants in peat pots) as they were covered by healthy moss when received.

Overall survival by spring 2007 since planting of the shagbarks was about 30% (excluding the Ferguson trees and those destroyed by the vandal). It is difficult to make a precise survey as they leaf out well after the surrounding forbes which exceed them in height by that time. Growth is very slow, due to the lack of light, but the surviving trees were in good health.

180 viable seeds were collected by Len Collett in the fall of 2008. For the first time in years, no red squirrel got around to dropping the seed of one Lavant tree until mid-September. Half were planted immediately in situ in the frozen earth; the remainder were put in a frig for stratification.

The spring of 2009 was devastating - a prolonged early warm spell broken by a sharp frost on 12 April that affected many trees in the area. Only 15 surviving shagbarks were found.

A good crop of Lavant nuts was collected fall 2011; 200 were planted throughout the plot.

What a difference water and soil make!

this seedling is in its third year of growth in sandy soil where no watering is possible - it's 20 cm tall.

this one is also in its third year of growth, but is in loam and was watered twice a week whenever rainfall was less than 3 mm/day - it's 120 cm tall.

The Dolman Ridge planting crew: Murray Inch, Michael, Arthur, Alan and John Sankey

Survival June 2010: a few are rising above the surrounding forbes, but most still need clearing (when they can be found).

Sawmill Creek

In 2010, we received permission from the City of Ottawa to plant on a 30x60 m site as part of the Sawmill Creek constructed wetland adjacent to the O-Train Greenboro terminal. A multi-purpose pathway provides access to the site.

the site before planting

25 seedlings were planted on 1 May 2010 by John Adams, John Sankey and Richard Viger. A City of Ottawa CEPGP grant paid for steel stakes compatible with other stakes throughout the complex. Initially the trees were protected from voles by a pop bottle with the bottom cut off. As shown, this produced too much heat and humidity for these seedlings, which are so susceptible to rot, so the protectors were shortened to provide more ventilation. Then there was a prolonged drought, which drove most of the seedlings into dormancy; they started to recover in August when rains returned. However, to allow for losses, each dormant seedling had two additional seeds from the 2008 crop added beside them on 19 August. None of the planted seeds grew, and only three seedlings survived as of July 2011.

protection, but too humid

hopefully, protection enough

The fall of 2011 about 300 nuts were collected from the Lavant site. Each of the 22 empty planting sites received two. Given the difficulties experienced with these trees and protection devices, all the spots were instead given a layer of coco shells. I've found that these almost eliminate squirrel predation of bulbs due to overpowering or confusing their ability to smell buried treasure. One of the surviving trees is 20 cm tall, the other two only 5 cm.

July 2012 had one of the worst droughts on record. Between that and an influx of cottontail rabbits, only one tree survived as of September - one of the originals that is now 30 cm high. Six removed stakes were replaced, all empty sites replanted with seedlings from Burnstown and protected with 1/2" welded wire cages.

10 May 2013: 5 stakes and guards were pulled up over the winter; none of their seedlings survived predators. 12 have survived and are in leaf; 8 have not yet leafed out.

The planting crew: John Adams, Richard Viger, John Sankey

2012 protection of a Burnstown seedling

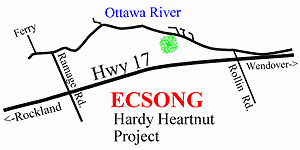

In the fall of 2009, a dozen Lavant shagbarks were planted at the organic farm of Gordon Wilkinson, where ECSONG's Hardy Heartnut Project is located. There are no squirrels on the site, and almost no voles, so no protection was used. Five survived the winter and subsequent dry spring, the others were replaced fall 2010.

Gordon with a newly planted seedling fall 2009

John Sankey
